Parts
Spreadlock Flask Cam Assemblies
| No. 40-C | Complete Cam Assembly for Cope |
| No. 40-D | Complete Cam Assembly for Drag |
| No. 40-C1 | Cope Cam Half Fitting in Flask |
| No. 40-C2 | Cope Cam Half Fitting in Lever |
| No. 40-D1 | Drag Cam Half Fitting in Flask |
| No. 40-D2 | Drag Cam Half Fitting in Lever |
| No. 40-C3 | Lever for Cope Cam |
| No. 40-D3 | Lever for Drag Cam |
| No. 40-C4 | Lever for Cope Cam - Simultaneous Activator |
| No. 40-C5 | Lever for Cope Cam - Simultaneous Activator |
| No. 40-D4 | Lever for Drag Cam - Simultaneous Activator |
| No. 40-D5 | Lever for Drag Cam - Simultaneous Activator |
| No. 40-A | Stud Bolt Complete with Nut and Washer |
| No. 40-B | Spring |
| No. 40-E | Rubber Inserts - Holes Punched - Specify Length |
| Rubber Insert Material in 36" Lengths - No Holes Punched | |
| No. 41-A | 5/8" 2-Piece Stops for Open Corners - Male and Female |
| No. 41-B | 1/2" 2-Piece Stops for Open Corners - Male and Female (For 3" & 3-1/2" Drag Sections) |
| No. 41-C | 1" 2-Piece Stops for Open Corners - Male and Female |
| No. 42 | Dowel Bushings for Tight Corners |
| No. 43 | Rubber Cam Shields (Not Pictured) |
| No. 44 | Steel Washers for Stud Bolt Head (Not Pictured) |
| No. 45 | 7/16" Flat Washers for Stud Bolts |
| No. 46 | 7/16" Castellated Nut for Stud Bolt |
| No. 47 | Cotter Pins for Castellated Nuts (Not Pictured) |
Camlock Corner Assembly Parts
| *Specify Depth of Cope & Drag When Ordering Replacement Parts* | |
| No. 35 | Complete Camlock Assembly - Specify Single or Double |
| No. 35-1 | Cams (2 Required Per Assembly) |
| No. 35-2 | Stud Bolt |
| No. 35-3 | End Cam Guide |
| No. 35-4 | Spring |
| No. 35-5 | Side Bushing |
| No. 35-6 | 7/16" Elastic Nut |
| No. 35-7 | 1/2" Lever Assembly for 7" Sections |
| No. 35-8 | 1/2" Lever Assembly for 8" Sections |
| No. 35-9 | 1/2" Lever Assembly for 9" Sections |
| No. 35-10 | 1/2" Lever Assembly for 10" Sections |
| No. 36 | Upset Connectors (Not Pictured) |
Flask & Pattern Guides

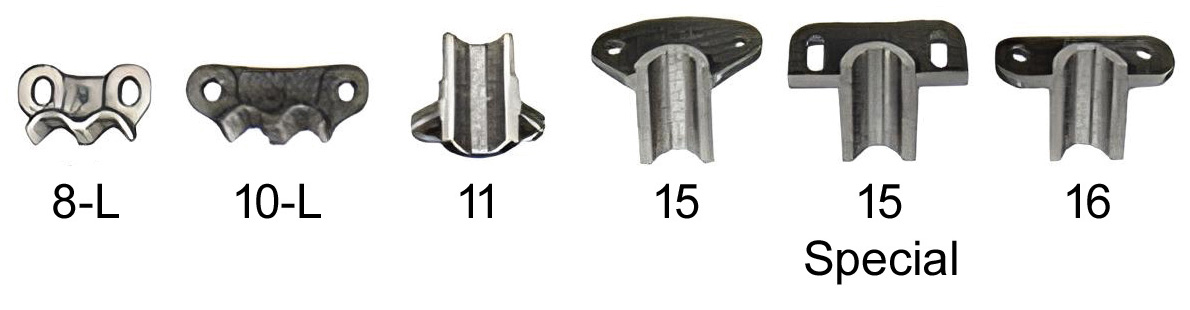

| No. 8-L - Double Round Pin Guide | No. 15 - Pattern Guide for 1" Pin |
| No. 10-L - Double Round Pin Guide | No. 15-S - Pattern Guide for 1" Pin |
| No. 11 - Pattern and Flask Guide for 1" Pin | No. 16 - Pattern Guide for 1" Pin |
HANDLES & TRUNNIONS
|

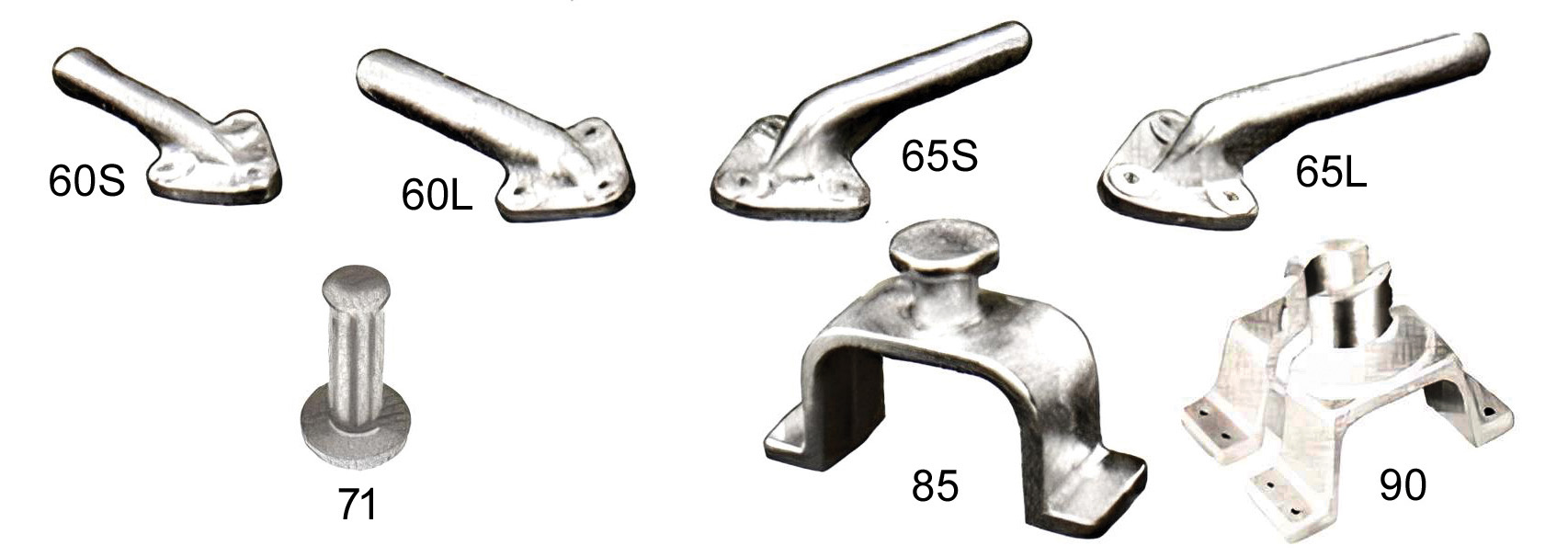

No. 60 - Handles for 2 man lifting |
No. 85 - Chain Trunnion |
|
No. 65 - Handles for 2 man lifting |
No. 90 - Rotolift Trunnion |
|
No. 70 - Handles for 2 man lifting **Available in Iron and Aluminum |
|
Pins for Fremont Flasks

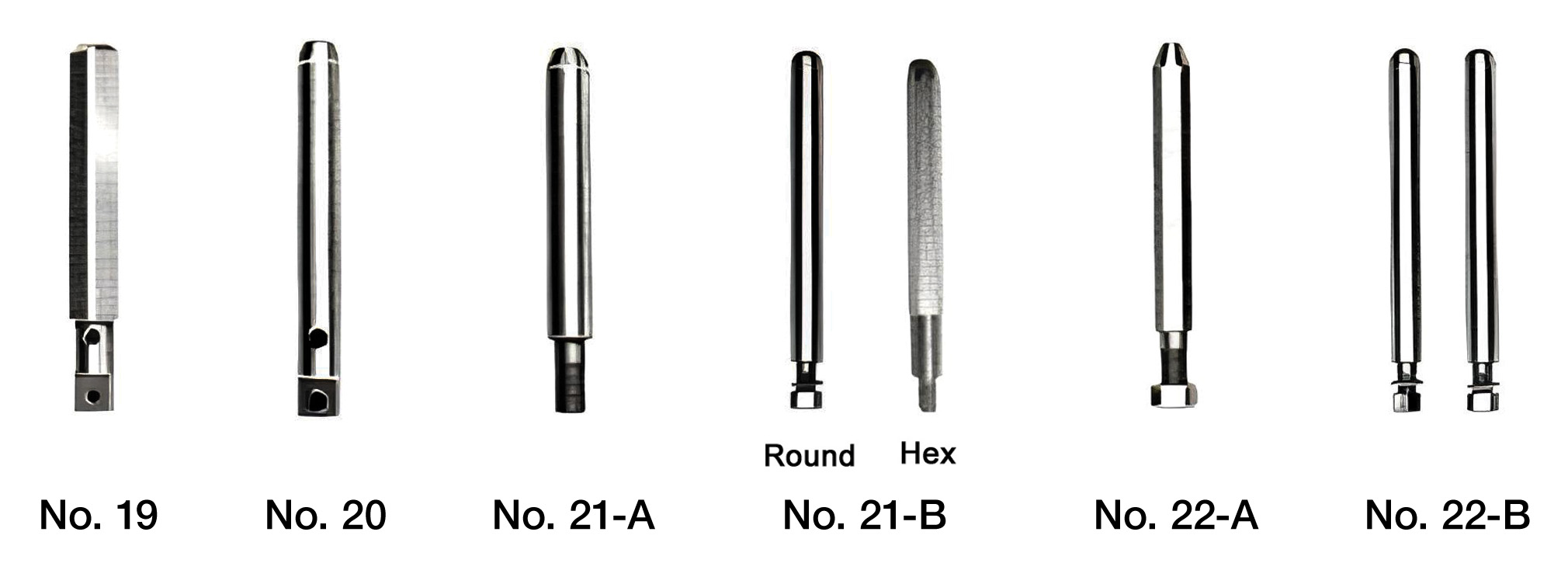

| No. 19 Groovlock "V" Pins | Overall Length: 6", 7", 8", 9", 10" | |||
| No. 20 Groovlock Pins | Overall Length: 5 1/2", 6", 6 1/2", 7", 7 1/2", 8", 9", 10" | |||
| No. 21-A Threaded Pins |
1.000x6 |
.995x6 |
.870x6 |
.745x6 |
|
5/8-18 x 1 5/8 shanks |
||||
| No. 21-B Threaded Pins |
Round |
Round |
Hex |
|
|
7/16-20 x 7/8 shanks |
||||
| No. 22-A Hexagon Threaded Pins |
Overall Length |
|||
| No. 22-B Double Round Pins |
Overall Length |
|||
| No. 23 Hex Head Cap Screws | ||||
| No. 24 Fillister Head Cap Screws | ||||
Bushings for Fremont Flasks

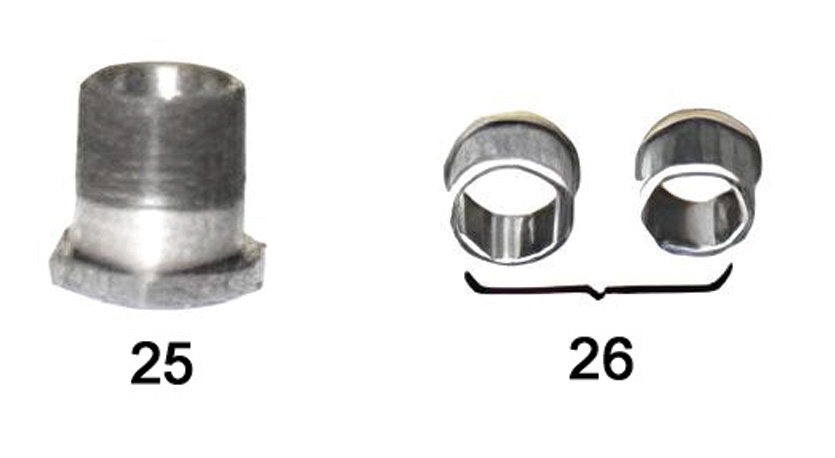

| No. 25 Threaded Bushings |
1" Round |
1 1/4" O.D. |
Length Available |
|||
|
3/4" Round |
1 1/8" O.D. |
Length Available |
||||
| No. 26 Press Bushings |
1" round |
1" elong. |
||||
| No. 27 Special Threaded Bushings |
1" round |
1 3/8" O.D. |
Length Available |
|||
| All threaded bushings are complete with nuts and washers. | ||||||
Aluminum Bottom Boards
DESCRIPTION

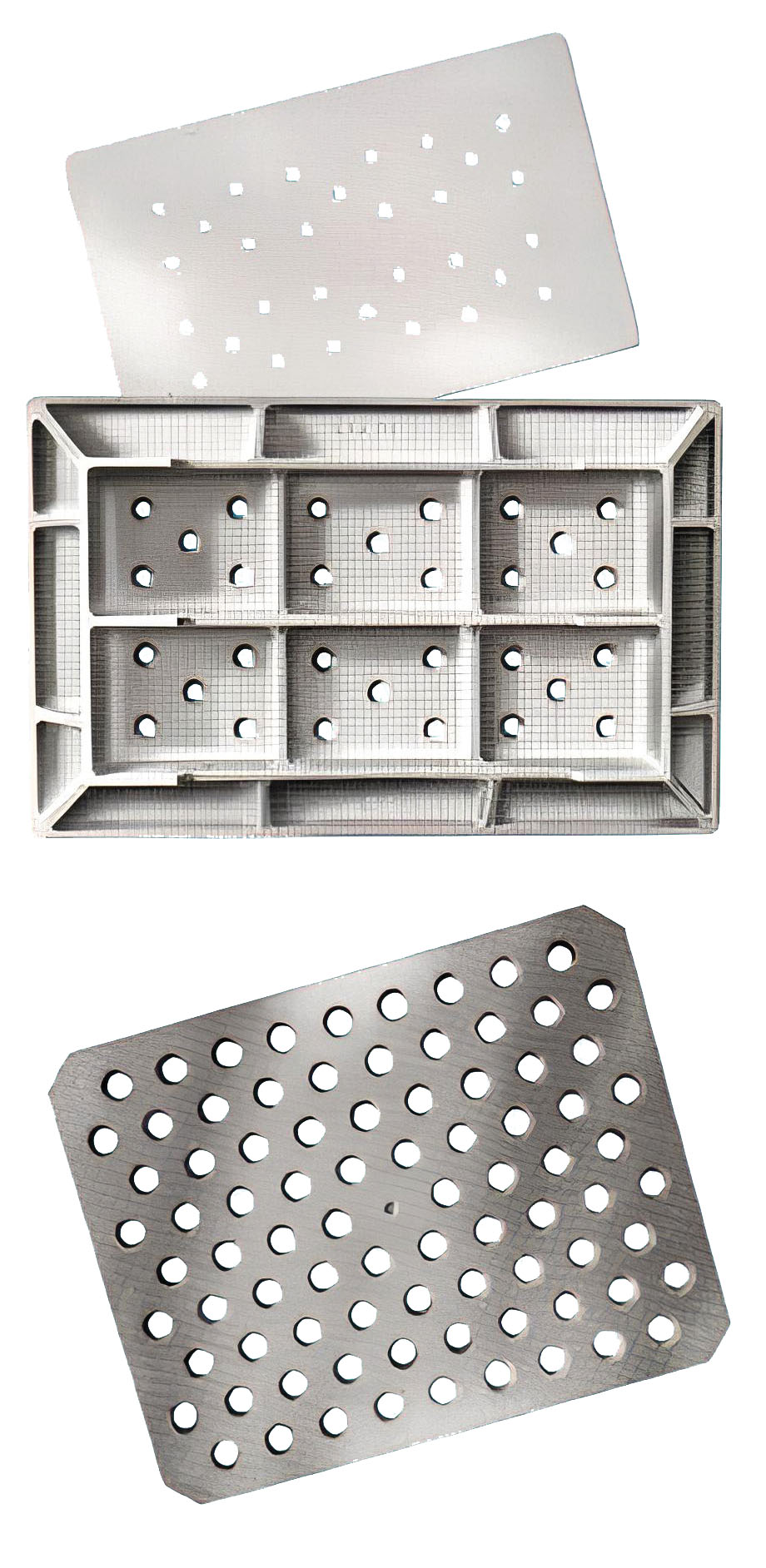

Fremont Flask Cast Aluminum bottom boards are available in a wide range of squeezer sizes.
Fremont standard bottom boards have 1/4 ribs and surface plate. The ribs provide reinforcement to the bottom board, giving it added strength and rigidity. This design helps prevent mold breakage and gives the bottom boards extra durability. Vent holes provide for easy venting of molds.
Special aluminum bottom boards for automated molding lines are also available. These high-quality bottom boards are the best in the field and are made to withstand the rigors of your molding operation.
